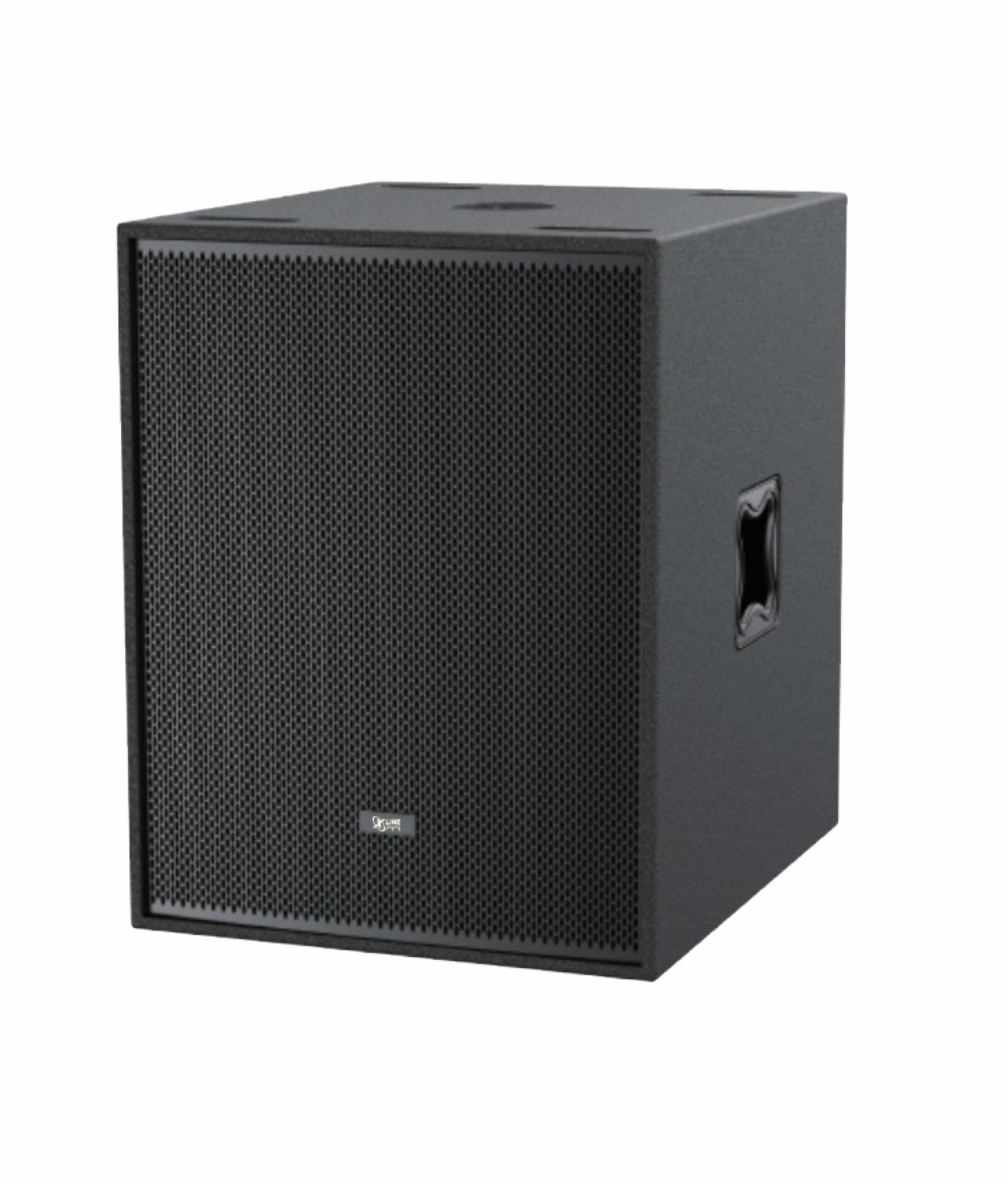

X-LINE PRO 18” Subwoofer
Product Model: XLP-18
| DESCRIPTION | SPECIFICATION |
|---|---|
| Frequency Response (-10dB) | 36Hz - 140Hz |
| Maximum Calculated SPL/1M | 123dB (Continuous) 126dB (Program) 129dB (Peak) |
| LF Driver | Customized 18” driver, 3.0” voice coil |
| DSP Processor | 48kHz signal sampling frequency |
| DSP Presets | 80Hz, 100Hz, 120Hz |
| Amplifier | Class D |
| Power (RMS Standard) | 800W |
| Peak Power | 1600W |
| Frequency Response (1W 8Ω 2CH) | 20Hz - 20kHz (±0.5dB) |
| Intermodulation Distortion | <0.5% |
| Total Harmonic Distortion | <0.5% |
| Cooling | Cooling with Fan |
| Protection | Short Circuit Protection, Soft Startup Protection, Over-Temperature Protection |
| Signal Input Connector | Female XLR |
| Signal Output Connector | Male XLR |
| Power Input | IEC Power Connector |
| Working Voltage | 100-130V~ / 220-240V (±10%, 50/60 Hz) |
| Power Consumption | 64W |
| Cabinet Material | CNC Machined Plywood |
| Grill | Iron Mesh |
| Handle | 2 Side |
| Pole Mount | M20 Base Φ35mm |
| Speaker Dimension (W×H×D) | 550×706×650mm |
| Carton Dimension (W×H×D) | 636×825×736mm |
| Net Weight | 39.0kg |
| Gross Weight | 42.0kg |
