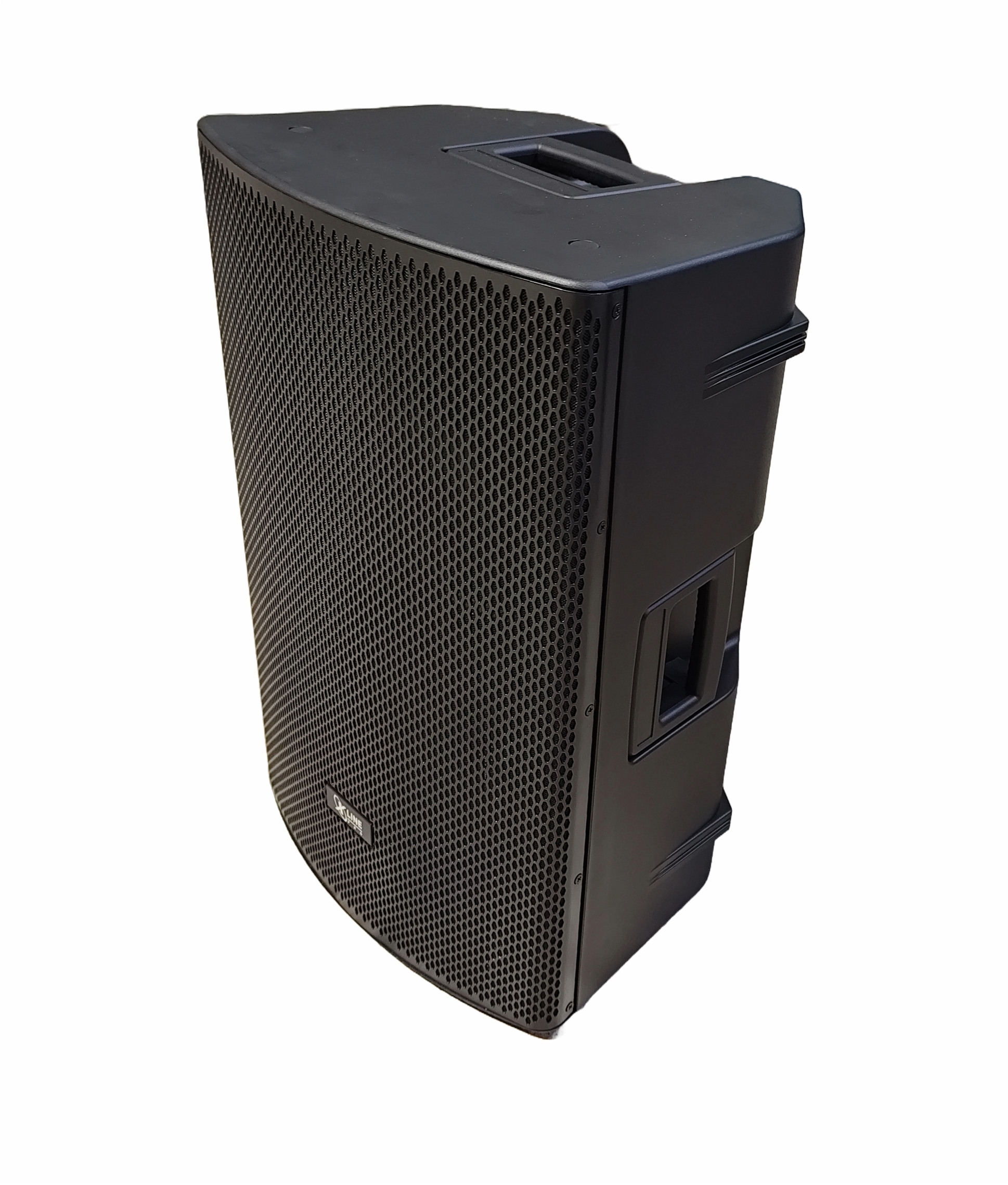

X-LINE PRO Single 15” Full Range DSP-Controlled Speaker

DESCRIPTION	SPECIFICATION
Type	Single 15” Full Range DSP-Controlled Speaker
Frequency Response (-10dB)	50Hz - 20KHz
Horizontal Coverage (symmetrical)	90°
Vertical Coverage (symmetrical)	60°
Maximum Calculated SPL/1M	124dB (Continuous) 127dB (Program) 130dB (Peak)
HF Driver	Customized Ferrite Driver, 1.4” voice coil, 1.0” exit
LF Driver	15” woofer, 2.0” voice coil
DSP Processor	48kHz signal sampling frequency
DSP Presets	MUSIC, FLAT, SPEECH
Amplifier	Class D
Power (RMS Standard)	800W
Peak Power	1600W
Frequency Response (1W 8Ω 2CH)	20Hz - 20kHz (±0.5dB)
Intermodulation Distortion	<0.5%
Total Harmonic Distortion	<0.5%
Cooling	Cooling with Fan
Protection	Short Circuit Protection, Soft Startup Protection, Over-Temperature Protection
Signal Input Connector	2 × Female XLR (Mono Jack 6.35) 1 × AUX Input 1 × Wireless Bluetooth
Power Input	IEC Power Connector
Working Voltage	100-130V~ / 220-240V (±10%, 50/60 Hz)
Power Consumption	64W
Cabinet Material	New PP Composite Material
Grill	Iron Mesh
Handle	Top×1, Side×1
Monitor Angle	Symmetrical 45° monitor angle
Hanging Hardwares	M8 Screw
Pole Mount	Base Hole Φ35mm
Speaker Dimension (W×H×D)	432×661×387mm
Carton Dimension (W×H×D)	476×743×445mm
Net Weight	17.0kg
Gross Weight	22.0kg
