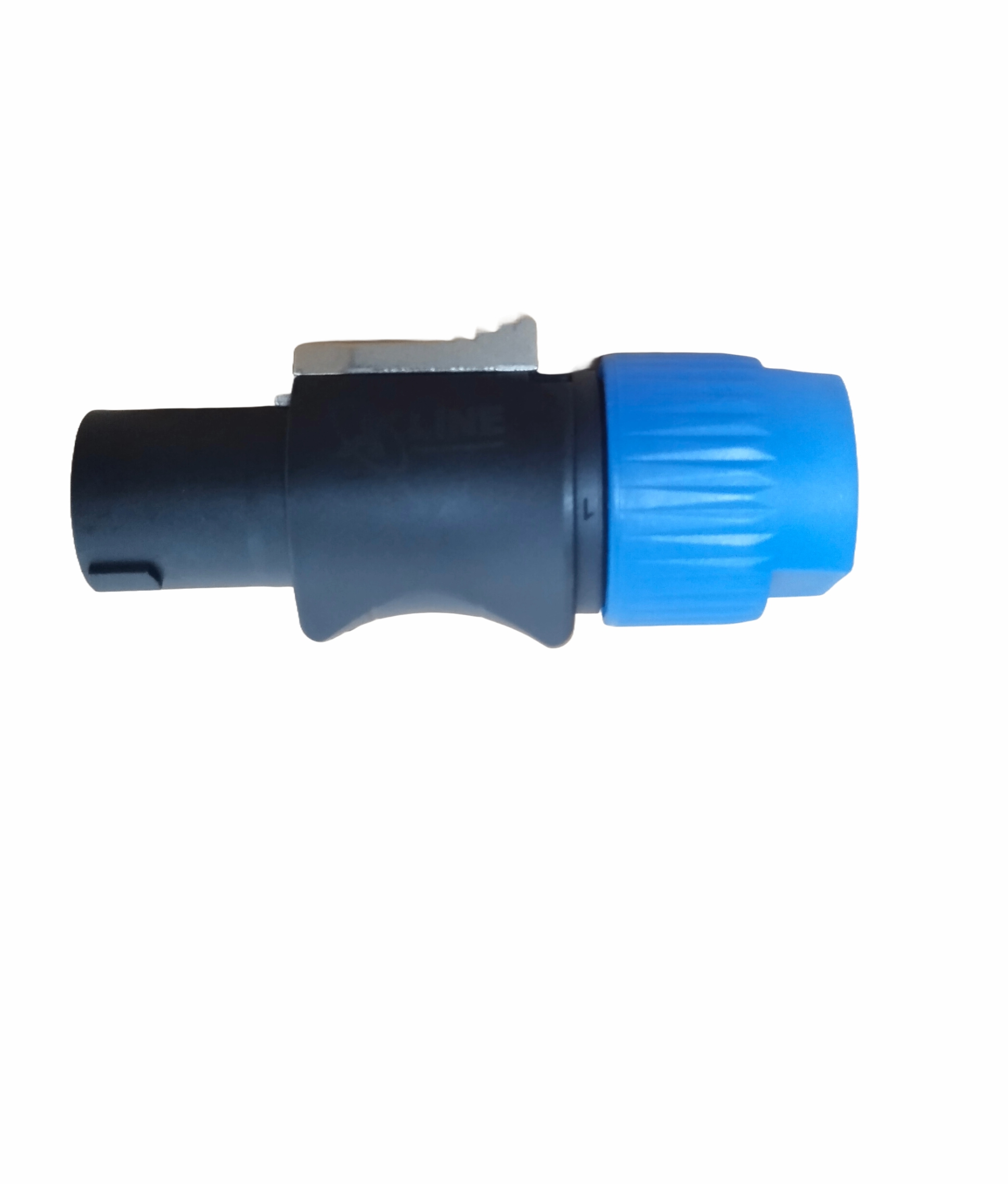

X-Line Speaker Connector
Product Model: XL-415
| DESCRIPTION | SPECIFICATION |
|---|---|
| Function | Easy and extremely precise locking system Improved grip on latch 1 piece strain relief, chuck for 7 to 14.5mm cable O.D. Improved screw-type termination for highest pull-out force |
| Description | M3 screw, 2.5 mm wiresize |
| Contact resistance | < 3mΩ |
| Frequency range | In MHz, 1-100 |
| Insulation resistance | in Ω > 1000 Ω |
| Dielectric strength | 4KV |
| Plating | 7μm Au over nickel plating |
| Insulator | PA6 15% GR |
| Temperature range | -30° C to +80 |
