Micart Wired Conference System

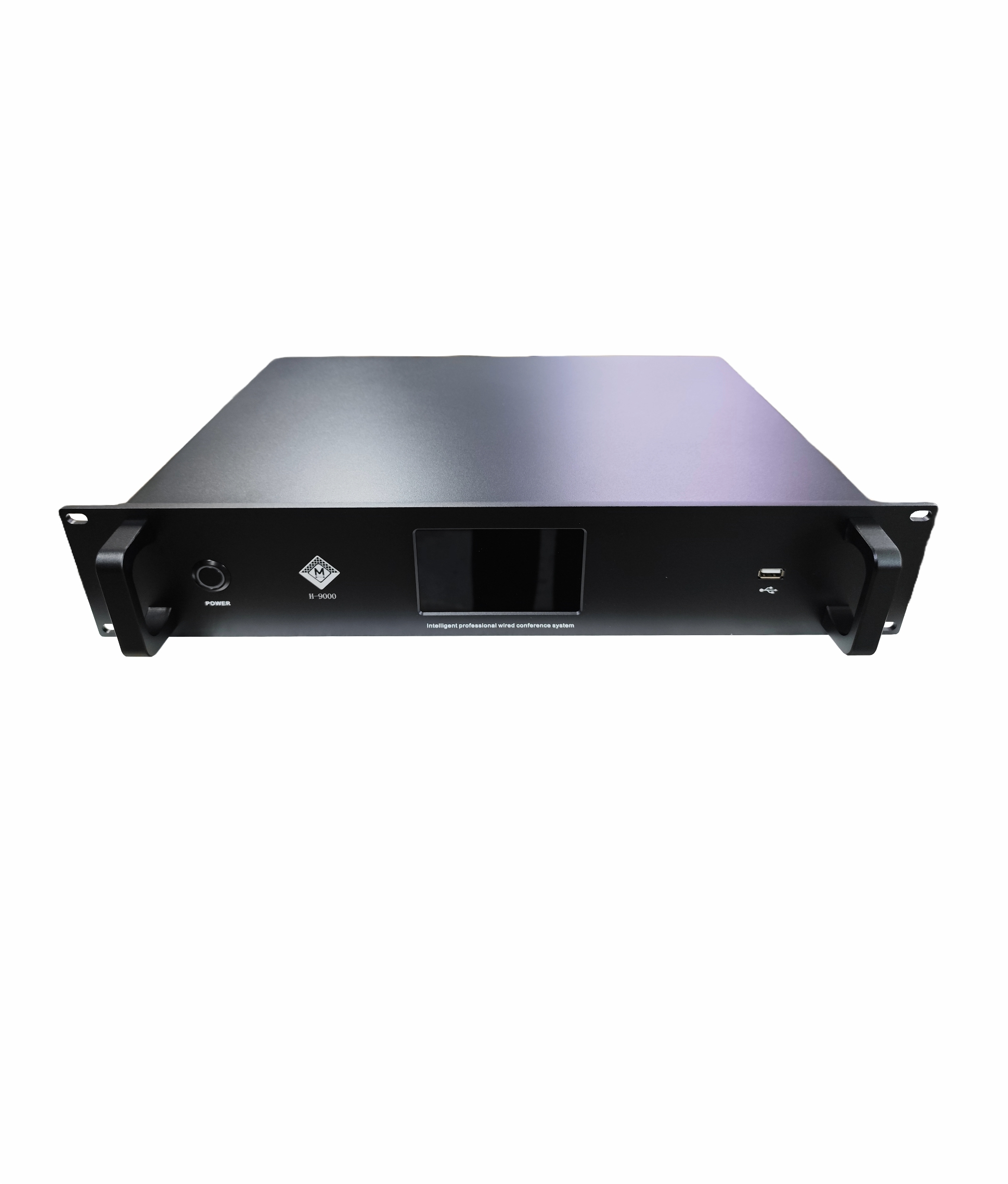

Product Model: MAP-9000W
| DESCRIPTION | SPECIFICATION |
|---|---|
| Host power supply | AC110V-220V150Hz |
| Microphone unit interface | Round DIN-8socket interfacex2 RJ45 network cable interfacex4 |
| Audio master output auxiliary | OUT VOL(knob) x1 |
| Audio total output | BAL OUT(3-pin XLR)x1 |
| Audio input assist | AUX VOL(knob)x1 |
| Audio recording output | AUX OUT(lotus socket)x1 |
| Audio input | AUX IN(lotus socket)x1 |
| Central control interface | RS-232 serial portx1 |
| Video matrix connector | VIDEO(9-pin)x1 |
| Phoenix connector | VIDEO RS422(5 pin)x1, PELCO-D/485 T-/B T+ x1 |
| Small eight-core serial port | VIDEO RS-232(small eight-core)x1 |
| frequency response | 20Hz-20kHz |
| signal-to-noise ratio | >96dBA |
| total harmonic distortion | <0.05% |
| External dimensions (LxWxH) | 483x323x90mm |
| color | black |
| Installation method | 19-inch standard cabinet |
