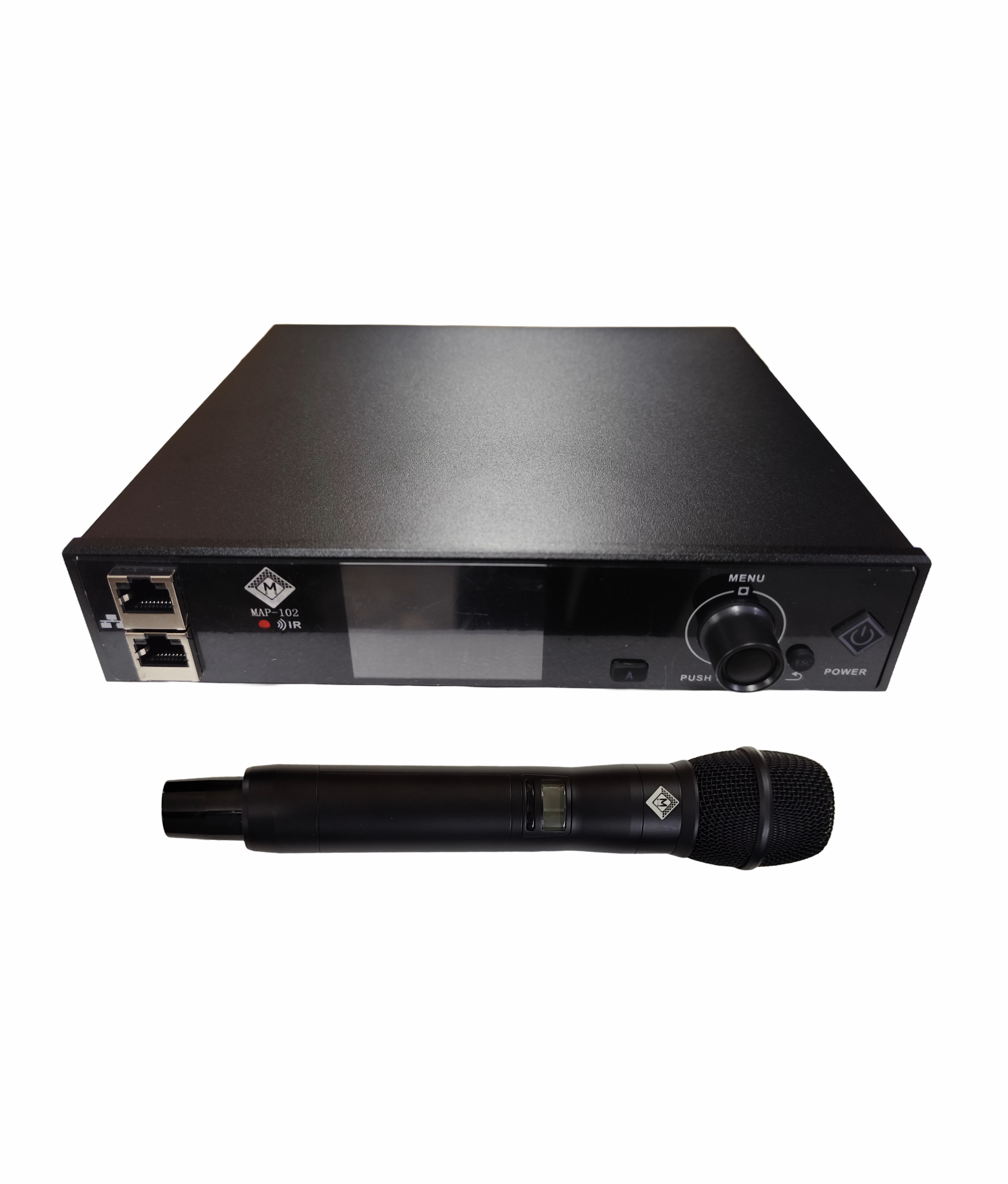

Micart Wireless Single Channel Microphone
Product Model: MAP-102
| DESCRIPTION | SPECIFICATION |
|---|---|
| Microphone Parameters | |
| Carrier Frequency Range | 520MHz 960MHz (depending on applicable national/regional regulations) |
| Frequency Width | 2×32MHz |
| Modulation Method | FM frequency modulation |
| Maximum Frequency Offset | +45KHz |
| Frequency Response | 50Hz-15KHz |
| Signal to Noise Rato (S / N) | > 105dNB (A) |
| Distortion (1KHz) | <0.3% |
| Working Temperature | -10°C-55 °C |
| Working Distance | 100 meters (under ideal conditions) |
| Receiver Parameters | |
| Stray Suppression | >= 80db |
| Image Suppression | >= 80db |
| Sensitivity | 5dbuv |
| Audio Output Level | Balanced Output |
| (XLR Output Jack) | 250mv / 600 Ω |
| Unbalanced Output ( 1/4 "output Jack) | 400mv/k3 Ω |
| Working Voltage | DC 12-16V |
| Working Current | ≤ 350ma |
