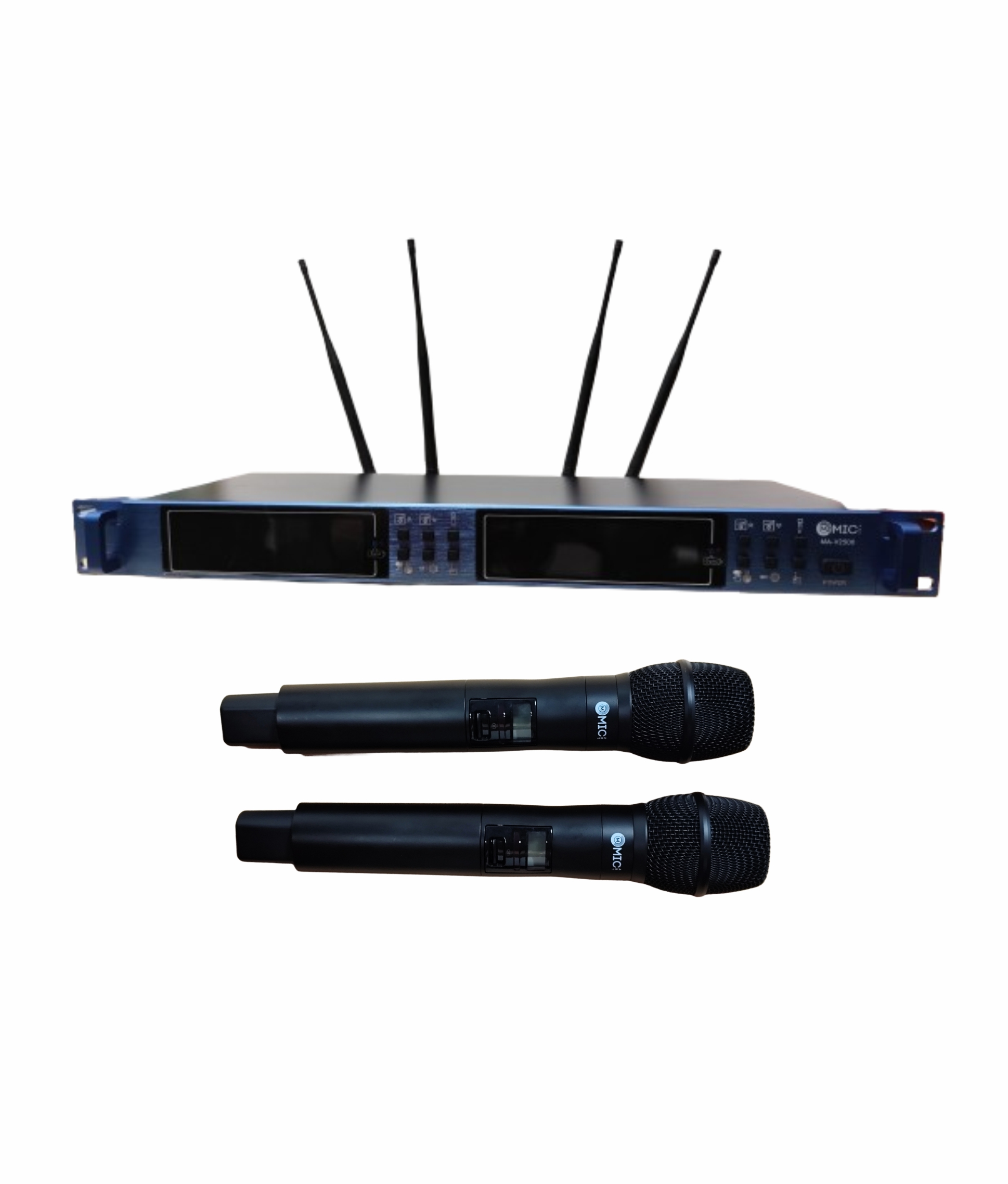

Mic Art Dual Handheld Microphone

DESCRIPTION	SPECIFICATION
Description	Micart Dual Hnadheld Microphone
Receiver technical parameters
Chassis Specifications	Standard 1U chassis
Number of channel groups	Dual channel
Carrier Frequency Band	640-690MHZ (Other bands can be customized)
Modulation mode	FM
Oscilation mode	PLL phase-locked frequency synthesizer
Sensitivity	At an offset equal to 25Hz and input of 6db u V, S/N>, 60db
Degree of offset	±45kHz
Bandwidth	24MHz
Integrated S/N ratio	>100 dB
Synthetic T. H. D	<0.5% @ 1 KHz
Integrated frequency response	50Hz-18kHzt3db
Output voltage	Balanced - -20dBV/100Ω Unbalanced - -4dBV/5KΩ
Output socket	XLR balanced and unbalanced socket in 6.3
Temperature range	-10°C-55°C
AC power supply	0.5-1A, 12-15V DC
Weight	About 2500 g
Dimensions	About 480 (width) × 45 (height) × 190 (depth)mm
Transmitter technical parameters
Carrier Frequency Band	640-690MHz (Other bands can be customized)
Oscillation mode	PLL phase-locked frequency synthesizer
Power output	10mW
Frequency response	50Hz 18KHz
Input sound pressure	130dB SPL
Sound head	Moving coil type
Battery	AA X2
Current consumption	<110 mA
Weight	About 500 g
Dimensions	About 270 (length) × 52 (diameter) mm

MICART
