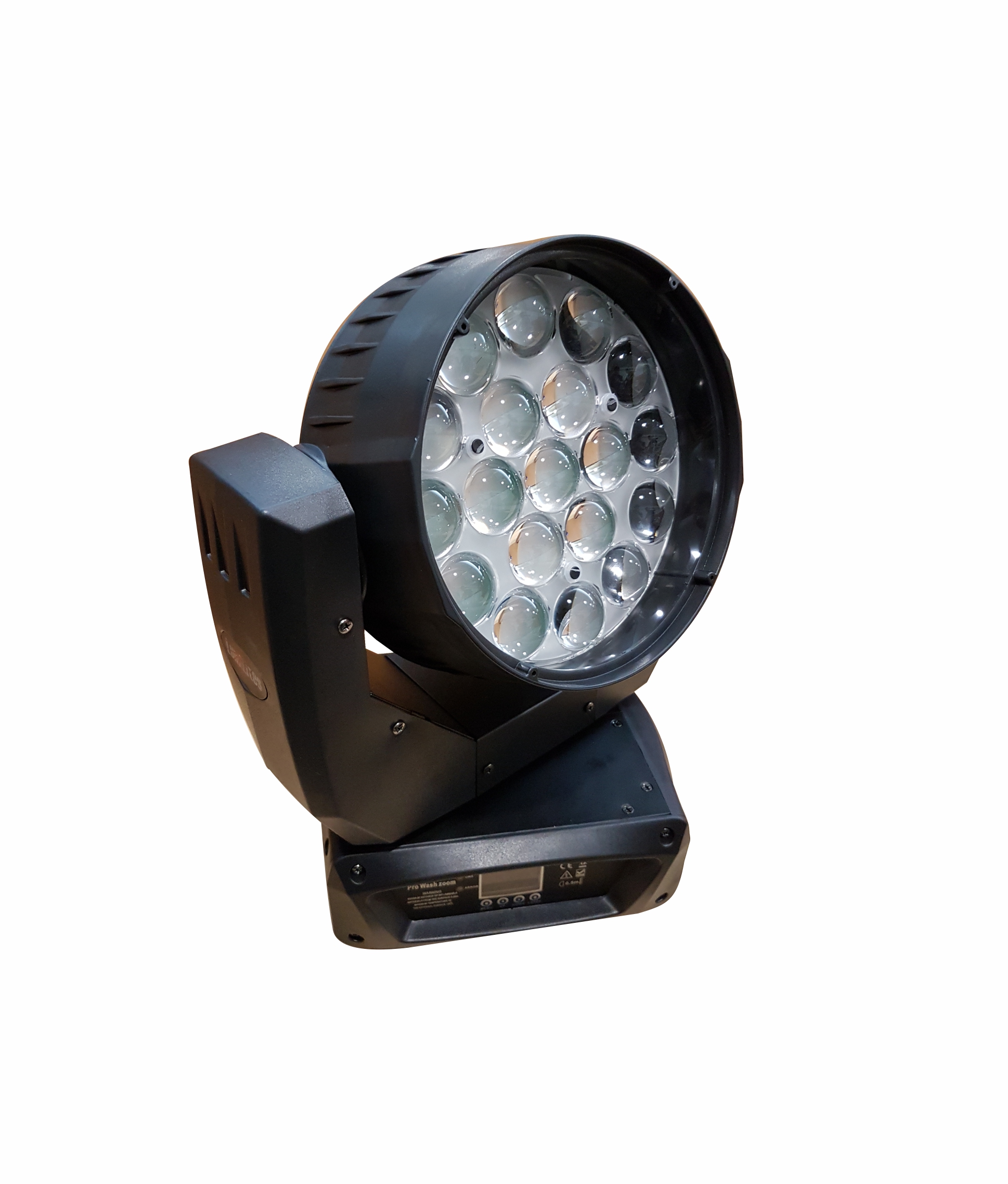

Lumilites M-Aura

DESCRIPTION	SPECIFICATION
AC power	100-240V nominal, 60Hz
Maximum total power consumption	260W
Protection Rating	IP20
Zoom Range	11° - 58°
Light Source	19×10W RGBW LED Array System
LED lifespan	50,000 hours
Beam color mixing	RGBW
Aura color mixing	RGB
Beam color temperature control	CTO, variable 10,000 - 2,500K Beam & aura independent shutter effects	Electronic, with regular and random pulse, burst and strobe effects
Pre-programmed effects	Range of synchronized and independent beam and aura effects, different effects can be combined
Electronic dimming	Independent beam and aura, four dimming curve options
Pan	540°
Tilt	232°
Control Mode	DMX
Control Options	Independent control of beam (primary output) and aura (secondary lens array illumination)
Macro programs selectable via DMX	Synchronized beam and aura effects
Control resolution	8-bit, with 16-bit control of pan & tilt
DMX channels	14/25 CH
Setting and addressing	Control panel with backlit graphic display
Connections	AC power input and output- Neutrik PowerCon
DMX and RDM data in/out	5-pin locking XLR
Length	302mm (11.9 in.) across yoke
Width	302mm (11.9 in.) across yoke
Height	360mm (14.2 in.) head straight up
Weight	5.6kg (12.4 lbs.) without accessories

Features
Single-lens wash w/ fully premixed color
Broad color palette, RGBW color mixing
Aura E-candy effect
Uniform shades
Built-in FX Engine
11 to 58° zoom
3850 Lumens output
Rapid movement
