BAIKAL DRUM KIT MICROPHONE

DESCRIPTION	SPECIFICATION

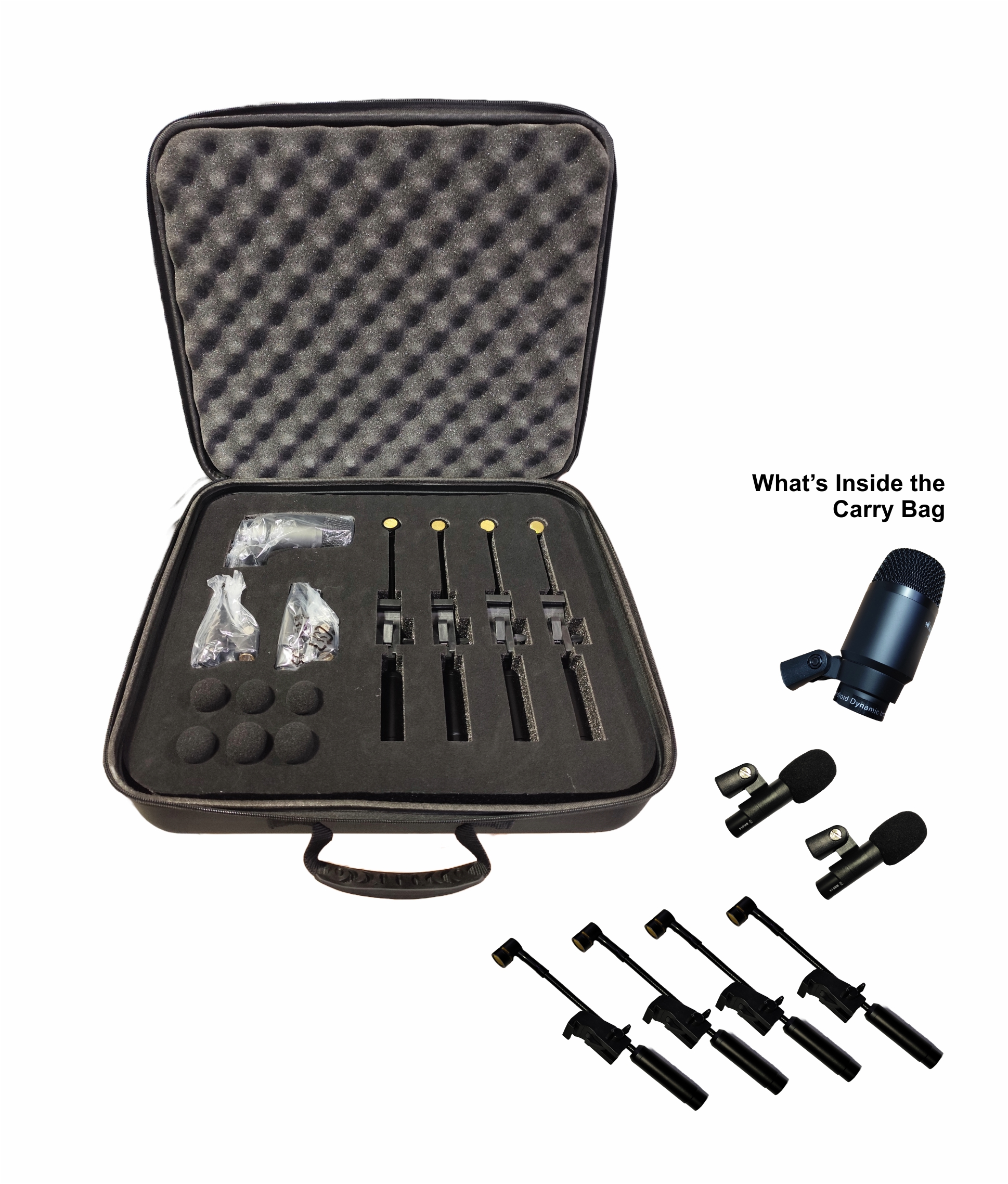

KIT INCLUSIONS	• 1 pc. Carry Bag • 1 pc. Bass Drum Microphone • 2 pc. Overhead Condenser Microphone • 4 pc. Tom/Snare Drum Microphone

BASS DRUM SPECIFICATION
Transducer principle	Dynamic
Frequency response	20 - 16,000 Hz
Pick-up pattern	Cardioid
Sensitivity(free field, no load)	0.9 mV/Pa (at 50 Hz) 0.25 mV/Pa (at 1 khz)
Nominal impedance (at 1 kHz)	3500
Min. terminating impedance	1 ΚΩ
Connector	XLR-3

TOM/SNARE DRUM SPECIFICATION
Transducer principle	dynamic
Frequency response	40 - 18,000 Hz
Pick-up pattern	cardioid
Sensitivity (free field, no load at 1 kHz)	1, 8mV / P * a
Nominal impedance (at 1 kHz)	3500
Min. terminating impedance	1 ΚΩ
Connector	XLR-3

OVERHEAD CONDENSER SPECIFICATION
Transducer principle	pre-polarised condenser microphone
- Frequency response	40 - 20,000 Hz
Pick-up pattern	super-cardioid
Sensitivity (free field, no load at 1 kHz)	3 mV/Pa
Nominal impedance	500
-Min. terminating impedance	1 ΚΩ
Phantom powering	12-52 V/3 mA
Connector	XLR-3
Max.sound pressure level at 1 kHz	139 dB/SPL

BAIKAL
