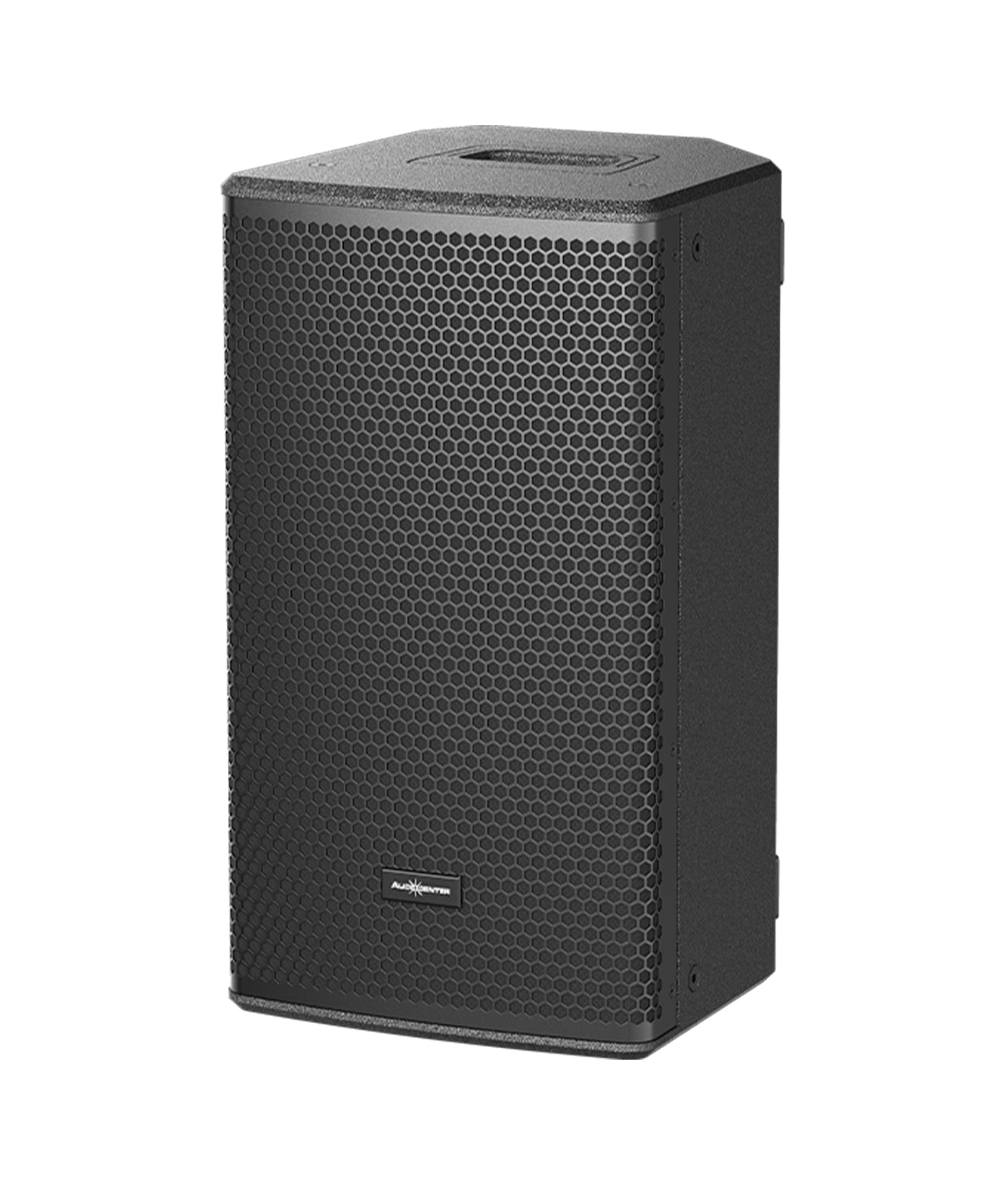

Audiocenter 12” Active DSP-Controlled Speakers

DESCRIPTION	SPECIFICATION
Type	Active DSP-controlled full range loudspeaker
Frequency Response(-10dB)	46Hz-20kHz
Maximum Calculated SPL/1M (Continuous/Peak)	126dB/132dB
Horizontal Coverage	80°
Vertical Coverage	50°
HF Driver	Customized driver, 1.75” voice coil and 1.0”exit
LF Driver	Customized 12” driver, 2.0” voice coil
DSP processor	48kHz signal sampling frequency
Presets	MUSIC, FLAT, SPEECH, W/SUB
Amplifier Circuitry	Class D
Power (RMS Standards)	1000W
Power (Peak)	2000W
Frequency Response(1W 8Ω 2ch)	20Hz-20kHz(±0.5dB)
Intermodulation Distortion	<0.05%
Total Harmonic Distortion	<0.05%
Cooling	Air convection
Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input	Female XLR(Mono jack 6.35), 3.5mm Jack Input, Wireless bluetooth
Signal Output	Male XLR Balanced Output
Power Input	IEC power connector
Working Voltage	100-240V~ (±10%,50/60Hz)
Cabinet Material	CNC Machined Plywood
Coating	Durable Polyurea Coating
Cabinet Color	Black
Grille	Iron Mesh
Handles	1 top
Monitoring Angle	45° monitoring Angle
Hanging Hardware	M8 screw
Pole Mount	Base hole Φ35 mm
Speaker Dimension (W×H×D)	363×626×375mm
Net Weight	18.0 kg
