DESCRIPTION | SPECIFICATION |
---|---|

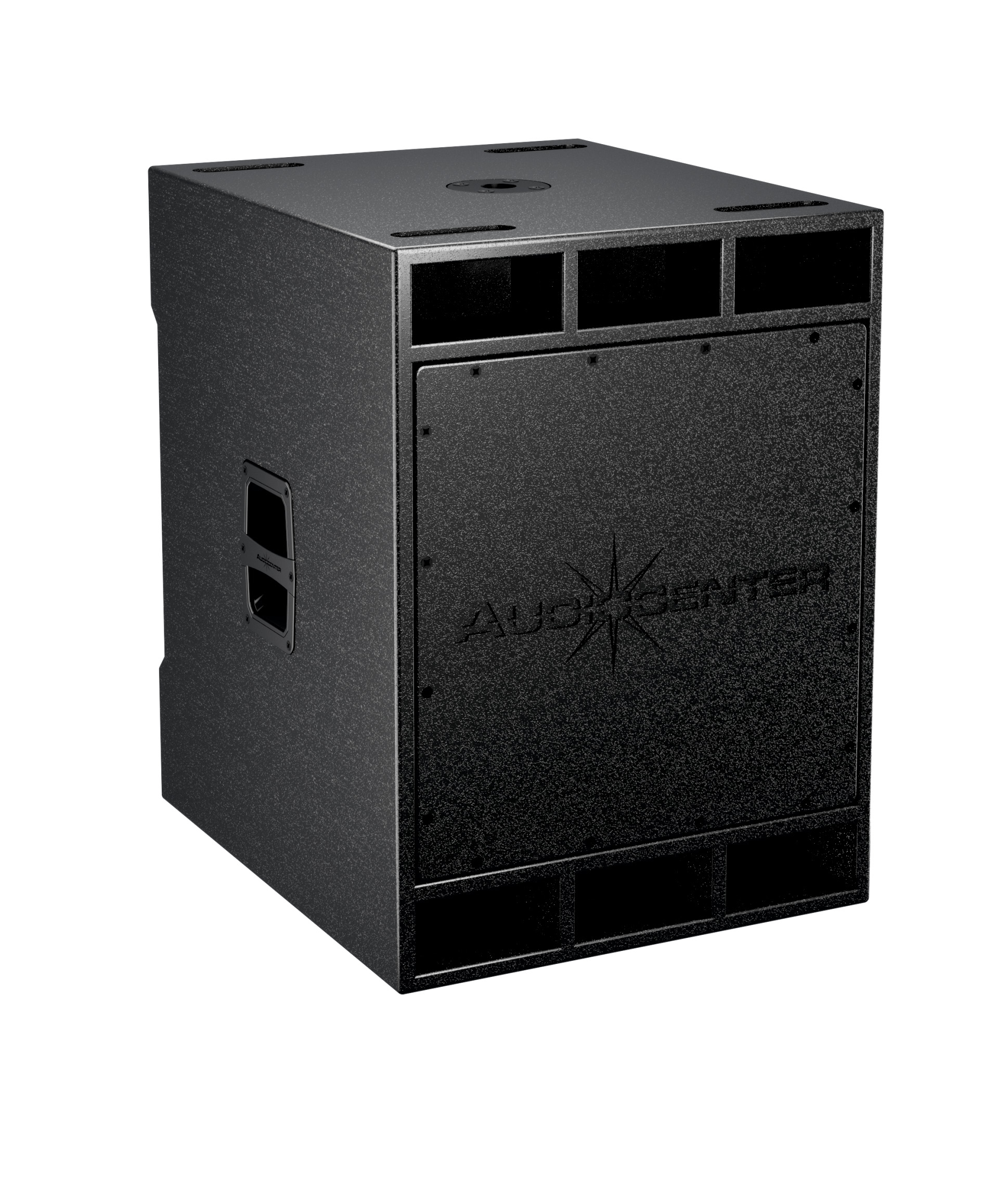

Type | Active DSP-controlled compact subwoofer |
Frequency Response (-6dB anechoic chamber) | 35Hz-1501Hz |
Maximum Calculated SPL/1M | 134dB |
LF Driver | Customized AUDIOCENTER ferrite driver, 4” voice coil |
Amplifier Circuitry | Class D |
Power (Peak) | 2000W |
Frequency Response (1W 8Ω 2ch) | 20Hz-6KHz (±0.5dB) |
Intermodulation Distortion | < 0.05% |
Total Harmonic Distortion | < 0.05% |
Protection | DC Protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection. |
Cooling System | Cooling with fans, air convection |
Processor | 96KHz signal sampling frequency, 24bit precision |
Presets | 80Hz, 100Hz, 120Hz |
Crossover | Controlled by DSP |
Signal Input | 1x NEUTRIK® female XLR |
Signal Output | 1x NEUTRIK® male XLR |
Power Input | 3 pin plug |
Working Voltage | 100v-130v/60Hz or 220v-240v/50Hz |
Cabinet Material | CNC made |
Cabinet Color | Black standard color, can be customized |
Pole Mount | M20 base Ф35mm |
Dimension (W x H x D) | 520 × 700 × 618mm |
Net Weight | 43.0Kg |
