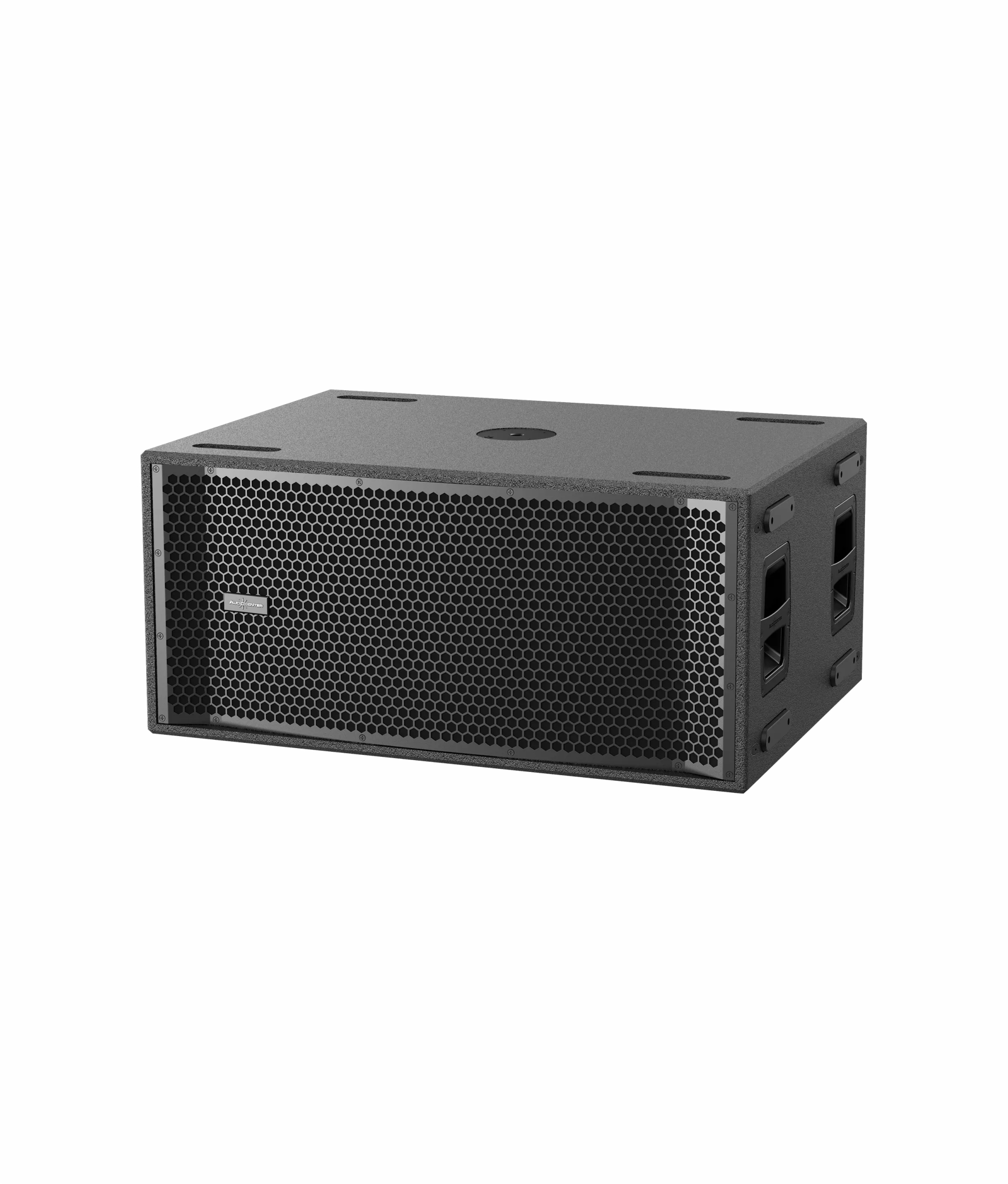

Audiocenter Active DSP-Controlled Compact Subwoofer

DESCRIPTION	SPECIFICATION
Type	Active DSP-controlled Compact Subwoofer
Frequency Response(-10dB)	32Hz-150Hz
Maximum Calculated SPL/1M (Continuous/Peak)	127dB/133dB
LF Driver	Customized 2×12” driver, 2.5” voice coil
DSP Processor	48kHz signal sampling frequency
DSP Presets	80Hz, 100Hz, Cardioid
Amplifier Circuitry	Class D
Power (RMS standards)	1500W
Peak Power	3000W
Frequency Response(1W 8Ω 2ch)	20Hz-20kHz(±0.5dB)
Intermodulation Distortion	＜0.05%
Total Harmonic Distortion	＜0.05%
Cooling System	Cooling with fans, air convection
Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input	Female XLR
Signal Output	Male XLR
Power Input	Power connector
Working Voltage	100-240V~(±10%,50/60Hz)
Power consumption (1/8 output power)	149W
Cabinet Material	CNC made of excellent wood
Coating	Durable Polyurea Coating
Cabinet Color	Black is the default color.
Grille	Iron mesh
Handles	4 side
Pole Mount	M20 base Φ35mm
Speaker Dimension (W×H×D)	814x378x580mm
Carton Dimension (W×H×D)	458x903x666mm
Net Weight	41.0kg
Shipping Weight	44.0kg
