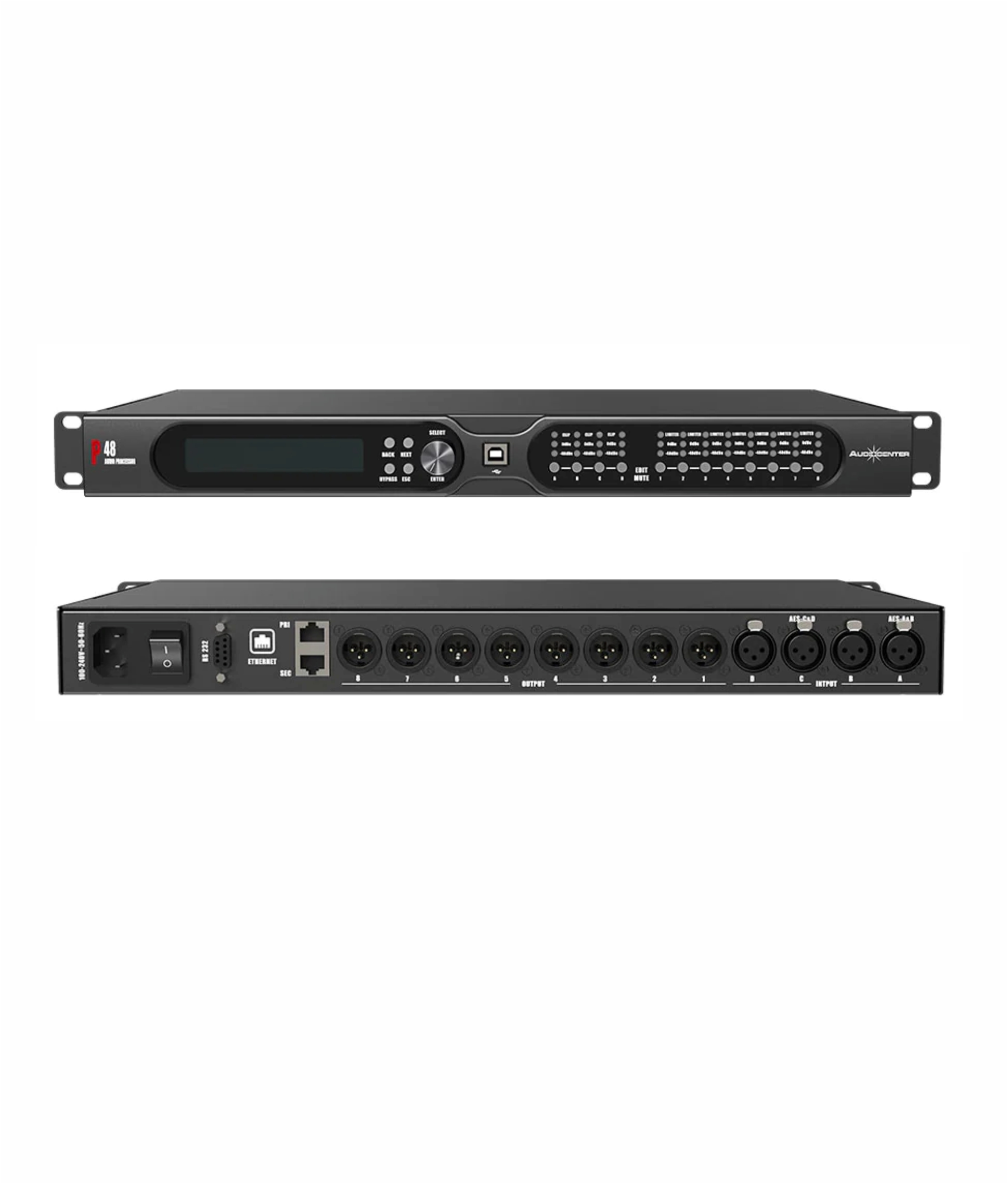

Audiocenter Speaker Management

DESCRIPTION	SPECIFICATION
Sampling Rate	96kHz
AD/DA Converter	24bit
Audio System Delay	<2.1ms (analogue input – analogue output)
Input (Analogue)	4-channel electronically balanced
Input (AES)	4-channel AES input
Input Interface	4 x female XLR
Output (Analogue)	8-channel electronically balanced
Output Interface	8 x Male XLR
DSP (EQ)	-EQ types- PEQ high/low shelf all pass all pass 2 variQ high/low pass elliptic high/low pass high/low pass band pass notch
DSP (DEQ)	Each input with a 3-band DEQ
DSP (Delay)	-Input delay- each channel 2000ms -Output delay- each channel 20000ms
DSP (FIR)	-Input FIR- each channel 512Taps (@48kHz) -Output FIR- each channel 512Taps (@48kHz)
DSP (Crossover)	Butterworth Linkwitz-Riley Bessel- 6dB /oct to 48dB / oct
DSP (Limiter)	Compressor + limiter
Input Impedance	≥10kΩ
Output Impedance	<100Ω
Maximum Input Level	≥+20dBu
Maximum Output Level	≥+20dBu
Frequency Response	±0.3dB, 20Hz-20kHz
S/N Ratio	≥113dB @1kHz, A weighted
THD+N	≤0.002% @1kHz, 0dBu, A weighted
Crosstalk	≥105dB @1kHz
Connection Type	USB / RS232 / TCP / IP
AC Power Operating Range	100-240V / (±10%, 50-60Hz)
Power Consumption	<20W
Rack Space	1U
Dimensions(W x H x D)	483 x 44 x 265mm
Net Weight	3.6kg
