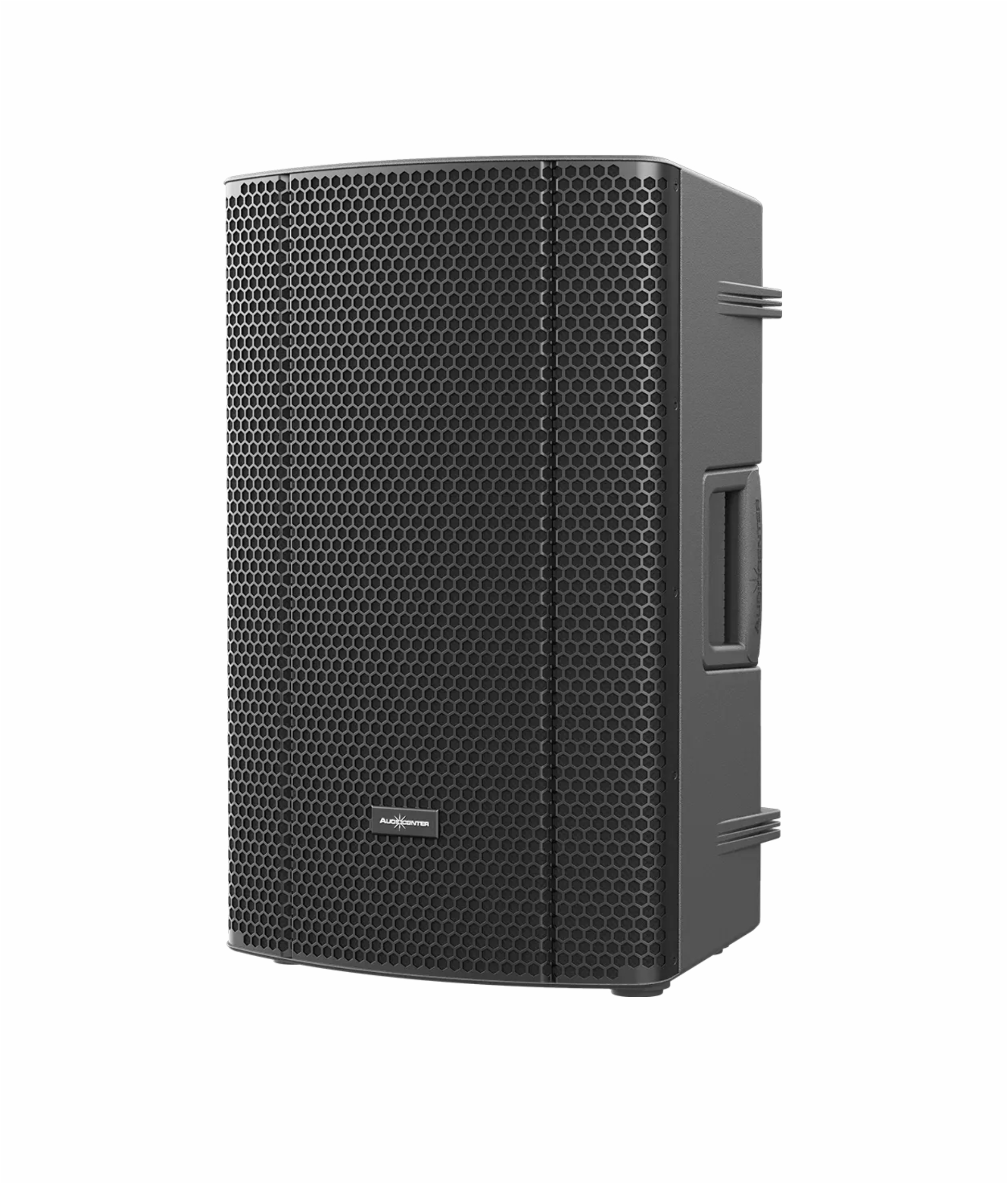

Portable Active DSP-controlled Loudspeaker

DESCRIPTION	SPECIFICATION
Type	Portable Active DSP-controlled Loudspeaker
Frequency Response(-10dB)	45Hz-20kHz
Horizontal Coverage	90°
Vertical Coverage	60°
Maximum Calculated SPL/1M (Continuous/Peak)	128dB/ 134dB
HF Driver	Customized driver, 1.75” voice coil and 1.0”exit
LF Driver	Customized 15” driver, 3.0” voice coil
DSP Processor	48kHz signal sampling frequency
DSP Presets	MUSIC，FLAT，SPEECH，W/SUB
Amplifier Circuitry	Class D
Power (RMS standards)	800W
Peak Power	1600W
Frequency Response(1W 8Ω 2ch)	20Hz-20kHz(±0.5dB)
Intermodulation Distortion	＜0.05%
Total Harmonic Distortion	＜0.05%
Cooling System	Cooling with fans, air convection
Protection	DC protection, short circuit protection,overheat protection, input overload protection, output overload protection,soft startup protection, overvoltage protection, undervoltage protection
Signal Input	Female XLR(Mono jack 6.35),3.5mm Jack Input, Wireless bluetooth
Signal Output	Male XLR mixed output or balanced output
Power Input	IEC power connector
Working Voltage	100-240V~ (±10%，50/60Hz）
Power consumption (1/8 output power)	64W
Cabinet Material	New polypropylene composite material
Cabinet Color	Black is the default color
Grille	Iron mesh
Handles	1 side,1 top
Monitor Angle	Symmetrical 45° monitor angle
Hanging Hardwares	M8 screw
Pole Mount	Base hole Φ35mm
Speaker Dimension (W×H×D)	432×661×387mm
Carton Dimension (W×H×D)	476x743x445mm
Net Weight	18.0kg
Shipping Weight	23.0kg
