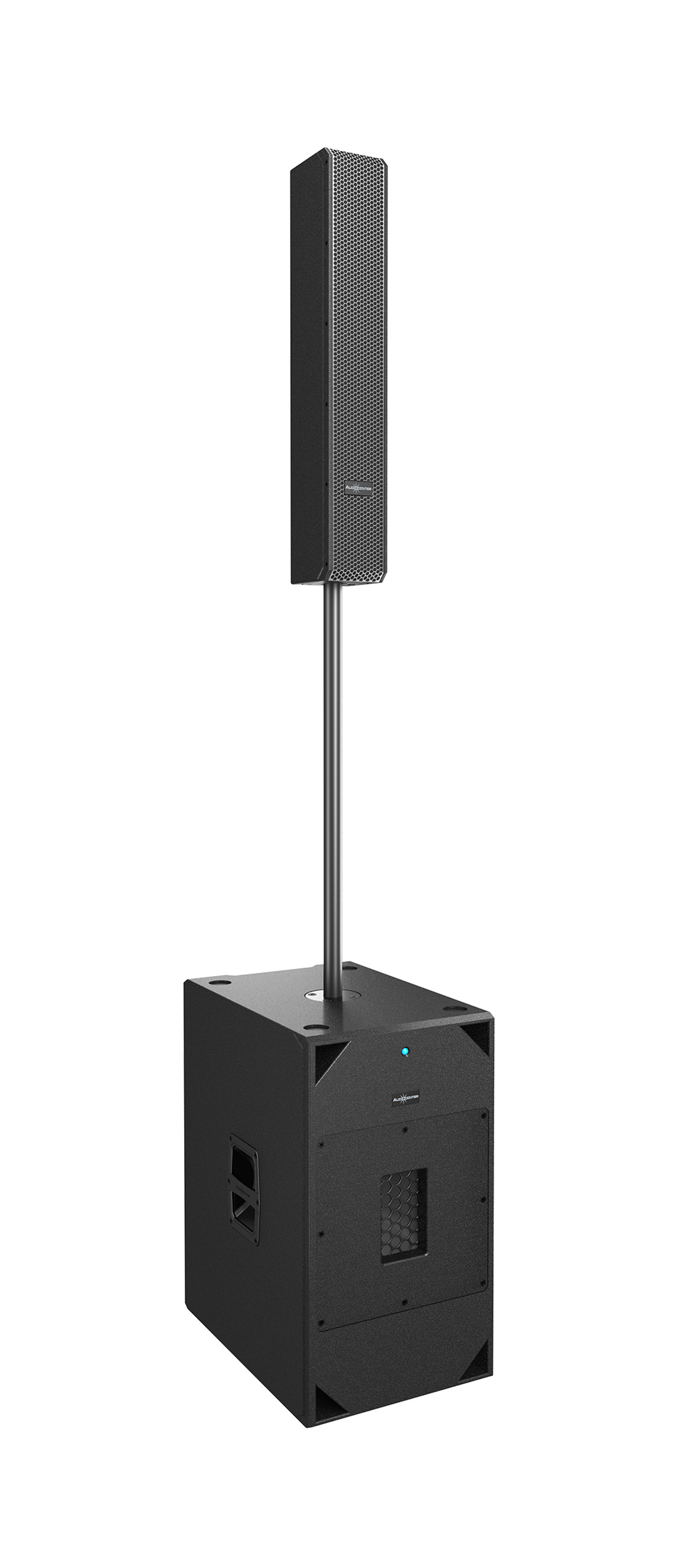

Audiocenter Column Array Speakers [High: 8×3” Drivers, Sub: 2×12” Drivers]

DESCRIPTION	SPECIFICATION
Type	Active DSP-Controlled Column Speaker System
Frequency Response (-6dB anechoic chamber)	42Hz-20KHz
Maximum Calculated SPL/1M	132dB
Subwoofer	Customized Audiocenter ferrite driver, 1 pc. 18" drivers
Mid-high Driver	Customized Audiocenter neodymium full-range driver, 8pcs 3" drivers
Horizontal Coverage Angle (Symmetrical)	100°
Vertical Coverage Angle (Symmetrical)	20°
DSP Processor	96KHz Signal Sampling Frequency, 24bit precision
DSP Crossover	Controlled by DSP
Amplifier Power	3000W
Frequency Response	20Hz-20KHz(±0.5dB)
Intermodulation Distortion	<0.5%
Total Harmonic Distortion	<0.5%
Power Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System	Cooling with fans, air convection
Signal Input	2×Combo (NEUTRIK® female XLR & Mono Jack 6.35) 1×Bluetooth
Signal Output	1×NEUTRIK® Male XLR
Amplifier Output Link L65	1×NEUTRIK® NL4MP
Column Input Link L65-A	1×NEUTRIK® NL4MP
Power Input	3 pin power socket
Working Voltage	100-130V/60Hz or 220-240V/50Hz
Cabinet Material	CNC made of excellent wood
L83 Pole Mount	Φ35mm (0/10° adjustable)
L65S Pole Mount	M20 base Φ35mm
Cabinet Color	Black is the default color
L83 Dimensions	125×758×150mm
L65S Dimensions	590×599×815mm
Height for 1pc L65+L65A	1820mm
L83 Net Weight	5kg
L65S Net Weight	54kg
