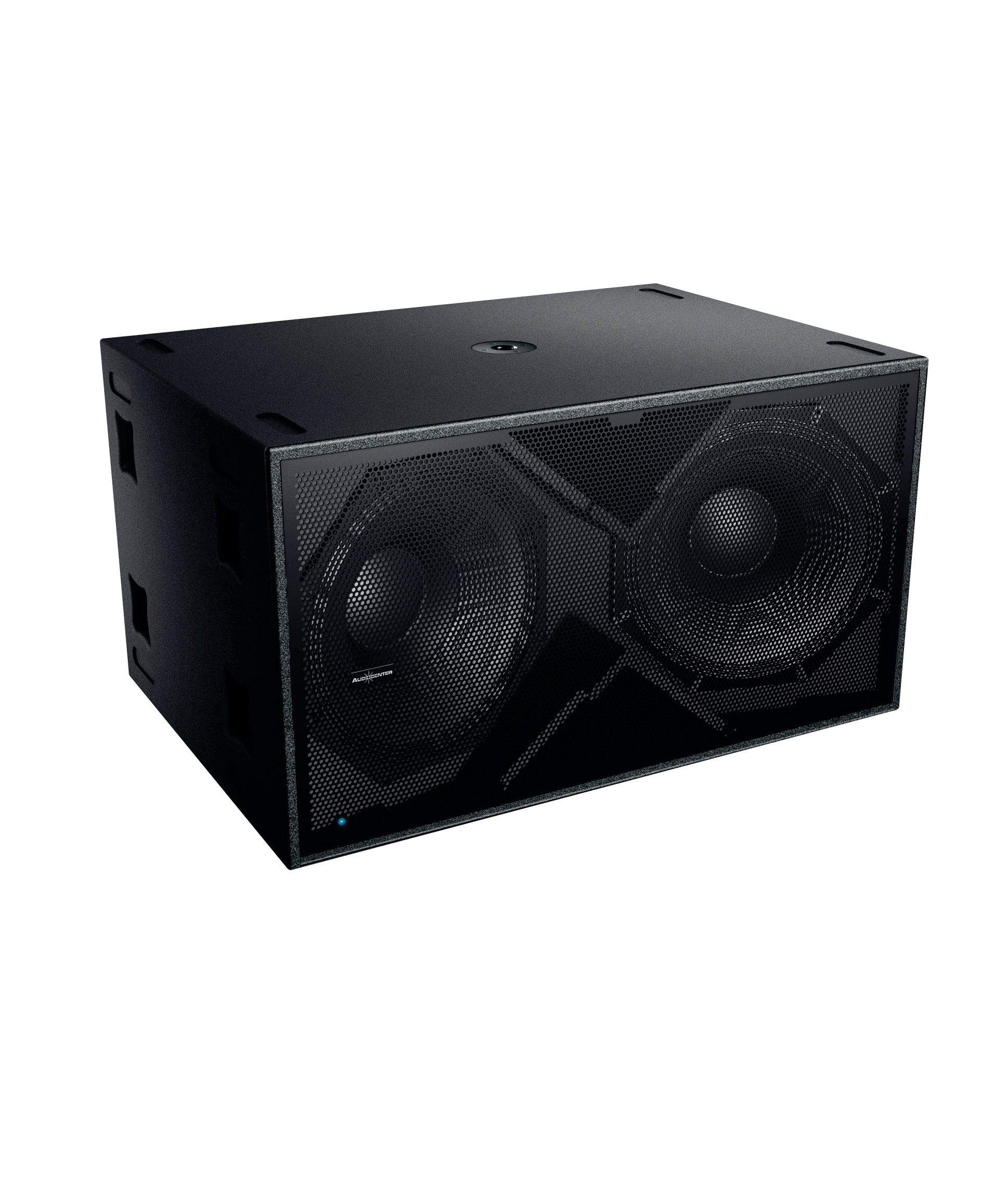

Audiocenter Dual 18” Active Subwoofer
Product Model: K-LA218-DSP
| DESCRIPTION | SPECIFICATION |
|---|---|
| Type | Active DSP-controlled Compact Subwoofer |
| Frequency Response (-68dB anechoic chamber) | 32Hz-150KHz |
| Maximum Calculated Spl/1M | 140dB |
| LF Driver | Customized AUDIOCENTER ferrite driver. 4” voice coil |
| Amplifier Circuitry | Class D |
| Power (RMS standards) | 2800W |
| Frequency Response (1W 8Ω 2ch) | 20Hz-6KHz (±0.5dB) |
| Intermodulation Distortion | < 0.05% |
| Total Harmonic Distortion | < 0.05% |
| Protection | DC Protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection. |
| Cooling System | Cooling with fans |
| Processor | 96KHz signal sampling frequency, 56bit precision |
| Presets | 80Hz, 100Hz, 120Hz |
| Crossover | Controlled by DSP |
| Signal Input | 1 x NEUTRIK® female XLR, |
| Signal Output | 1 x NEUTRIK® male XLR, |
| Power Input | Powercon NAC3MPA |
| Power Output | NAC3MPB |
| Working Voltage | 230v 50Hz / 120v 60Hz |
| Cabinet Material | Russian birch plywood CNC made |
| Cabinet Color | Black |
| Dimension (W × H × D) | 1080 × 595 × 760mm |
| Net Weight | 101.0Kg |
