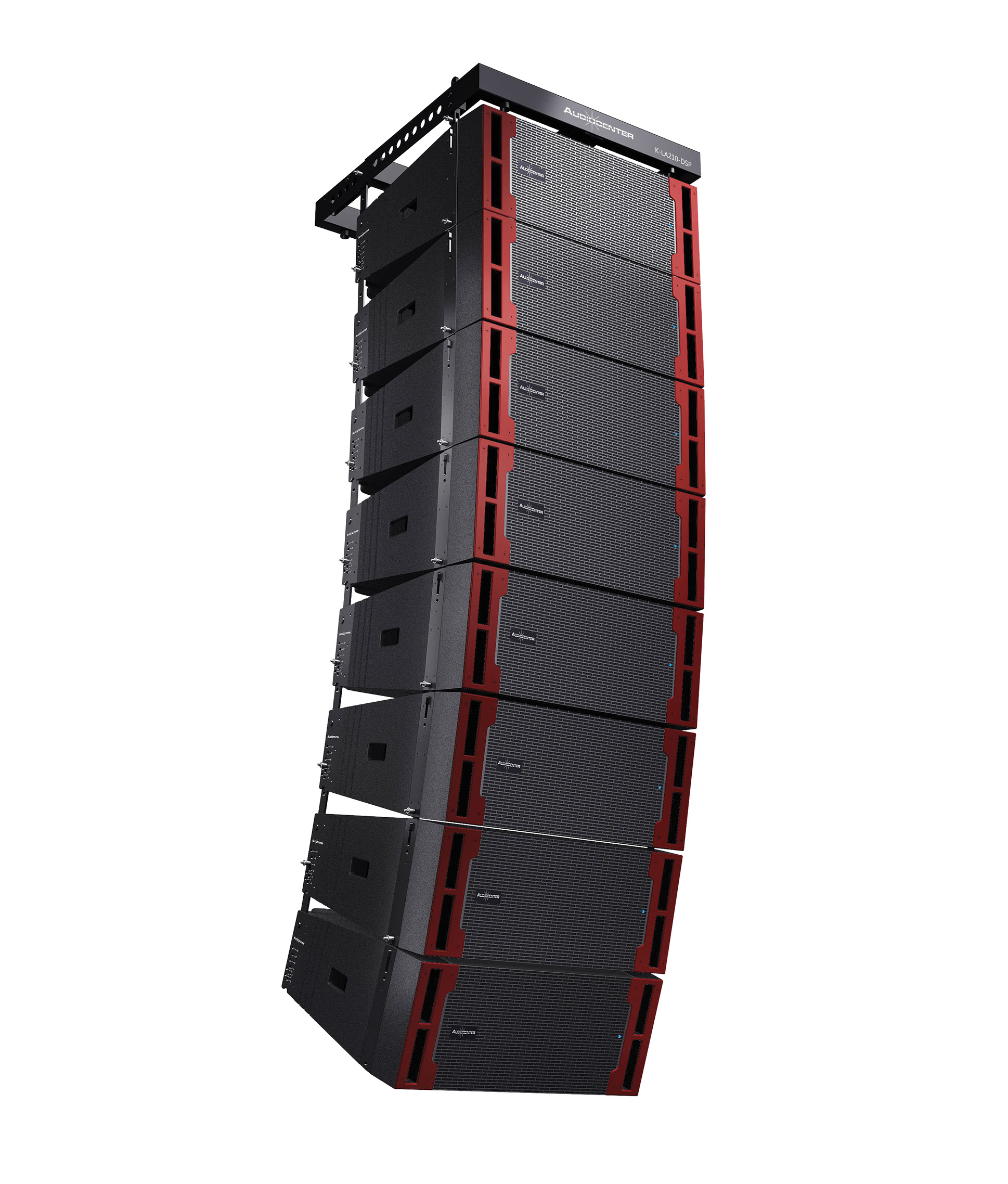

Audiocenter Dual 10” Active Line Array

DESCRIPTION	SPECIFICATION
Type	2-way Active DSP-controlled full range loudspeaker
Application	3 cabinets minimum, 16 cabinets maximum per array
Frequency Response (-68dB anechoic chamber)	57Hz-20KHz
Maximum Calculated Spl/1M	131dB
LF/MF Driver	Customized BEYMA ferrite driver, 2.5” voice coil
HF Driver	Customized BEYMA ferrite driver, 1.4” exit, 1.75” voice coil
Horizontal Coverage Angle (Symmetrical)	100°
Vertical Coverage Angle (Symmetrical)	Depends on the amount of the speaker and curvature of the line array
Amplifier Circuitry	Class D
Power (RMS standards)	1600W
Frequency Response (1W 8Ω 2ch)	20Hz-20KHz (±0.5dB)
Intermodulation Distortion	< 0.05%
Total Harmonic Distortion	< 0.05%
Protection	DC Protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection.
Cooling System	Cooling with fans
Processor	96KHz signal sampling frequency, 56bit precision
Presets	Linear HFX,W/SUB
Crossover	Controlled by DSP
Signal Input	1 x NEUTRIK® female XLR,
Signal Output	1 x NEUTRIK® male XLR,
Power Input	Powercon NAC3MPA
Power Output	NAC3MPB
Working Voltage	85V-265V 50Hz (60Hz)
Angle Adjustment	0°, 1°, 2°, 3°, 4°, 6°, 8°, 10°
Cabinet Material	Russian birch plywood CNC made
Cabinet Color	Black
Dimension (W × H × D)	742 × 302 × 695mm
Net Weight	38.5Kg
