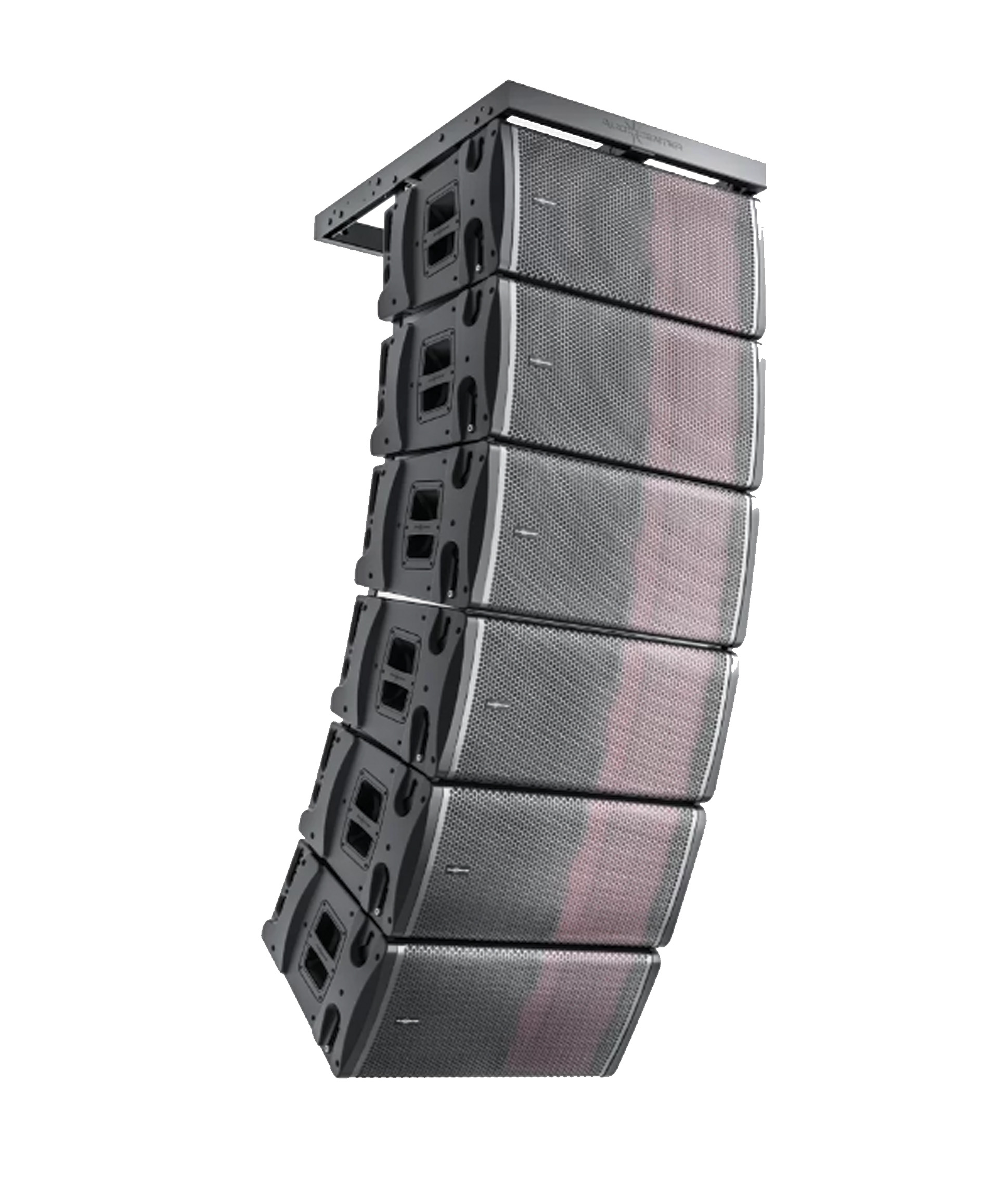

Audiocenter Single 12” Active Line Array

DESCRIPTION	SPECIFICATION
Type	Active DSP-controlled full range loudspeaker
Frequency Response (-6dB anechoic chamber)	47Hz-20KHz
Maximum CalculatedSpl/1M	137dB
LF Driver	Customized BEYMA ferrite driver, 3” voice coil
HF Driver	2× Customized BEYMA ferrite driver, 1” exit, 1.75” voice coil
Horizontal Coverage Angle (Symmetrical)	100°
Vertical Coverage Angle (Symmetrical)	Depends on the amount of the speaker and curvature of the line array
Amplifier Circuitry	Class D
Power (Peak)	2000W
Frequency Response (1W 8Ω 2ch)	20Hz-20KHz (±0.5dB)
Intermodulation Distortion	< 0.05%
Total Harmonic Distortion	< 0.05%
Protection	DC Protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection.
Cooling System	Cooling with fans
Processor	96KHz signal sampling frequency, 56bit precision
Presets	ARRAY2, ARRAY4, ARRAY6
Crossover	Controlled by DSP
Signal Input	1 × female XLR
Signal Output	1 × male XLR
Power Input	Power Connector
Power Output	Power Connector
Working Voltage	100V-130V 60Hz / 220V-240V 50Hz
Angle Adjustment	0°, 1°, 2°, 4°, 6°, 8°, 10°
Cabinet Material	CNC made of excellent wood
Cabinet Color	Black is the standard and default color, Consult with Audiocenter sales team for other customized colors.
Dimension (W × H × D)	698 × 324 × 468mm
Net Weight	31.0Kg
