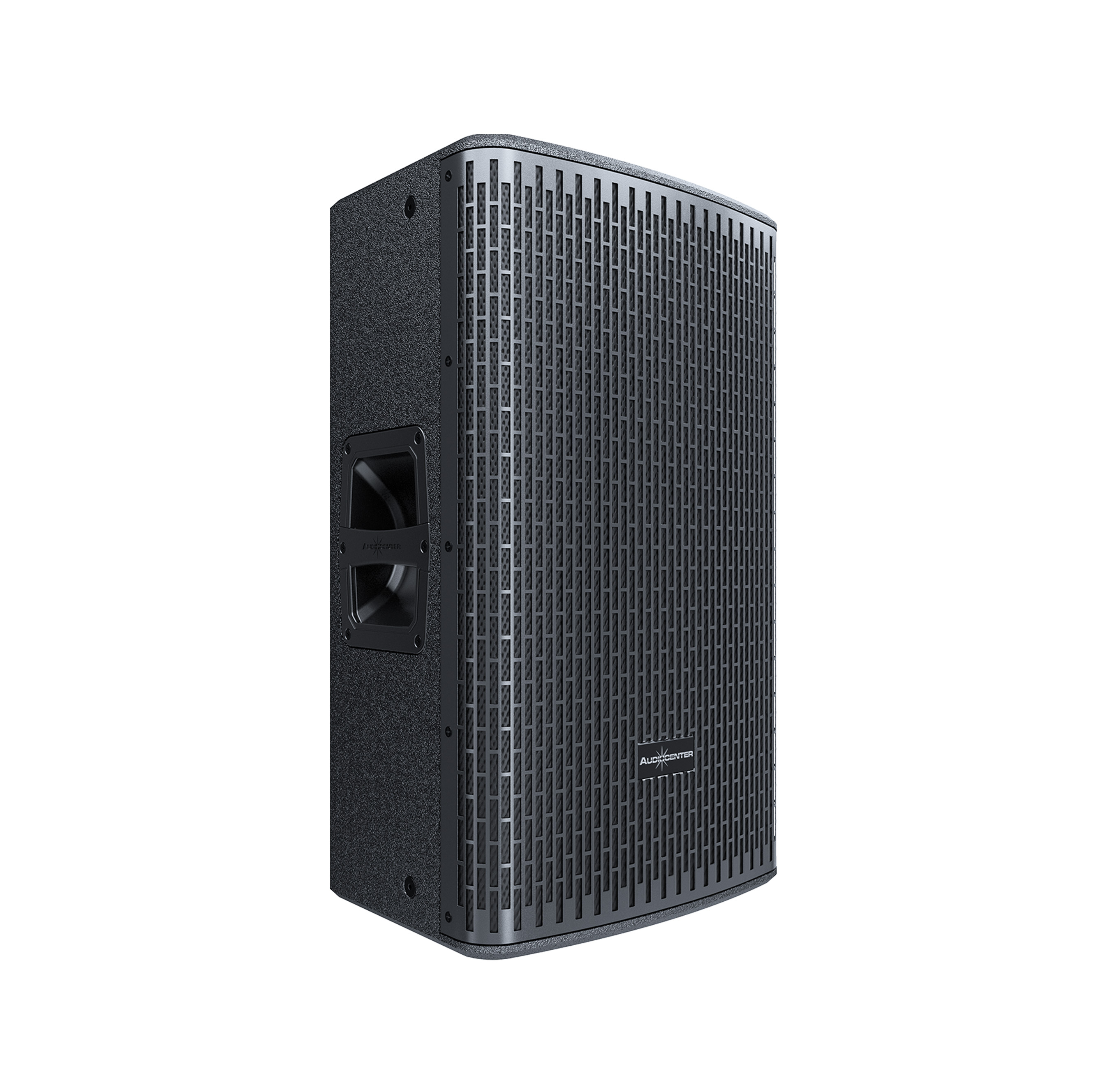

Audiocenter 10” Active GT Speakers

DESCRIPTION	SPECIFICATION
Type	Active DSP-controlled full range loudspeaker
Frequency Response(-10dB)	55Hz-20kHz
Maximum Calculated SPL/1M (Continuous/Peak)	124dB/130dB
HF Driver	Customized driver, 1.75” voice coil and 1.0” exit
LF Driver	Customized 10” driver, 3.0” voice coil
Horizontal Coverage	90°/60°
Vertical Coverage	90°/60°
DSP Processor	48kHz signal sampling frequency, FIR filtering
DSP Presets	MAIN, LF BOOST, W/SUB
Amplifier Circuitry	Class D
Power (RMS Standards)	1100W
Peak Power	2200W
Frequency Response(1W 8Ω 2ch)	20Hz-20kHz(±0.5dB)
Intermodulation Distortion	< 0.05%
Total Harmonic Distortion	< 0.05%
Cooling System	Cooling with fans, air convection
Power Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input	Female XLR(Mono jack 6.35)
Signal Output	Male XLR
Power Input	IEC Power Connector
Working Voltage	100-130V~ or 220-240V~ (±10%,50/60Hz)
Power Consumption	69W
Cabinet Material	CNC Machined Plywood
Cabinet Color	Black
Grille	Iron Mesh
Handles	2 Side
Monitor Angle	Symmetrical 45° monitoring Angle
Hanging Hardware	M8 screw
Pole Mount	Base hole Φ35mm，0° or 10° options
Speaker Dimension (W×H×D)	288×526×325mm
Carton Dimension (W×H×D)	383×610×415mm
Net Weight	15.0kg
Shipping Weight	18.0kg
